NTN 30226UDB+57.5

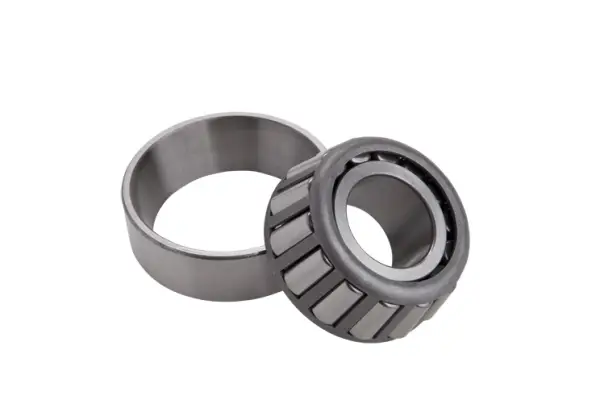

Tapered Roller Set - Metric Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Style
Cone & Cup
Configuration
Two
Lubrication
w/o Oil Hole
e (Axial Load Factor)
0.44
Y2 (Axial Load Factor)
2.31
Static Load Rating
1010000 N
Dynamic Load Rating
640000 N
Enclosure
Open
Weight
19.800 kg
Operating Temperature Range
-40 to 120 ºC

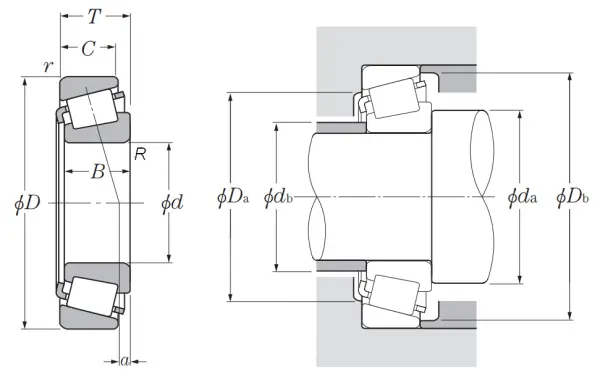

Dimensional Specifications
d
130.000 mm
D
230.000 mm
R
4.0 mm
