NTN 30260
Tapered Roller Set - Metric Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Style
Cone & Cup
Precision Rating
Class 0
Configuration
One
Lubrication
w/o Oil Hole
e (Axial Load Factor)
0.49
Y2 (Axial Load Factor)
1.23
Y0 (Axial Load Factor)
0.40
Static Load Rating
2220000 N
Dynamic Load Rating
1420000 N
Enclosure
Open
Weight
83.600 kg
Operating Temperature Range
-40 to 120 ºC

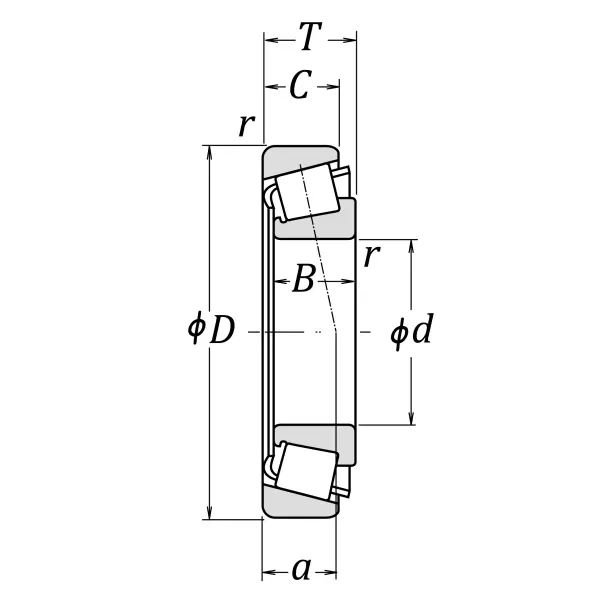

Dimensional Specifications
d
300.000 mm
D
540.000 mm
C
71.000 mm
B
85.000 mm
a (Effective Load Center)
-15.000 mm
T
96.000 mm
r
5.000 mm
R
5.0 mm
