NTN 3222C3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
287000 N
Dynamic Load Rating
214000 N
Enclosure
Open
Weight
8.690 kg
Operating Temperature Range
-40 to 120 ºC

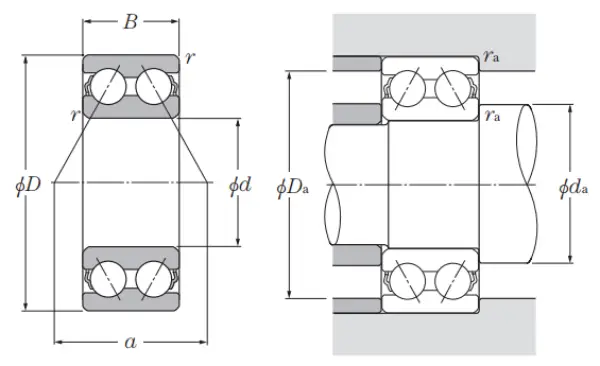

Dimensional Specifications
d
69.850 mm
D
200.000 mm
B
69.850 mm
r
2.032 mm
Contact Angle
30 º
