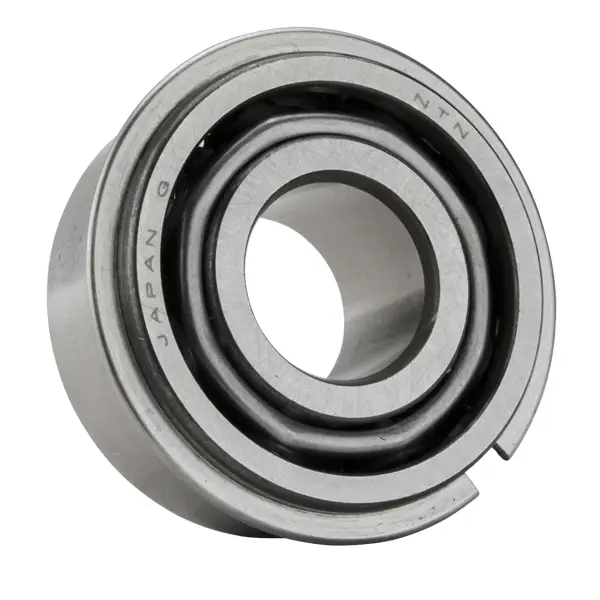

NTN 3306NR
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
37000 N
Dynamic Load Rating
37000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

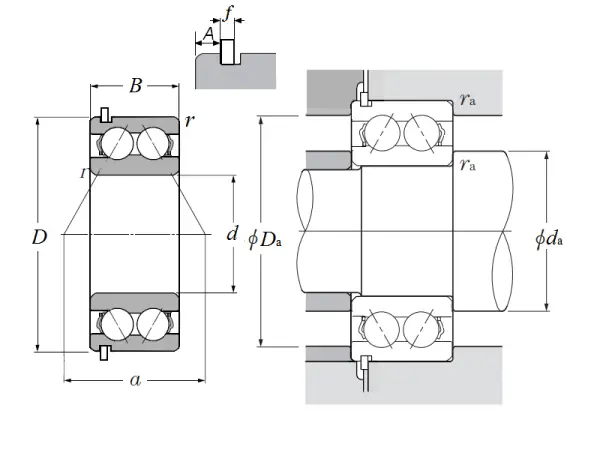

Dimensional Specifications
d
30.000 mm
D
72.000 mm
B
30.200 mm
A
3.070 mm
D2
78.600 mm
D1
68.300 mm
f
1.900 mm
r
1.100 mm
Contact Angle
32 º
a
44.500 mm
da min
37.000 mm
Da max
65.000 mm
ras max
1.000 mm
