NTN 3307C3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
49000 N
Dynamic Load Rating
48000 N
Enclosure
Open
Weight
0.784 kg
Operating Temperature Range
-40 to 120 ºC

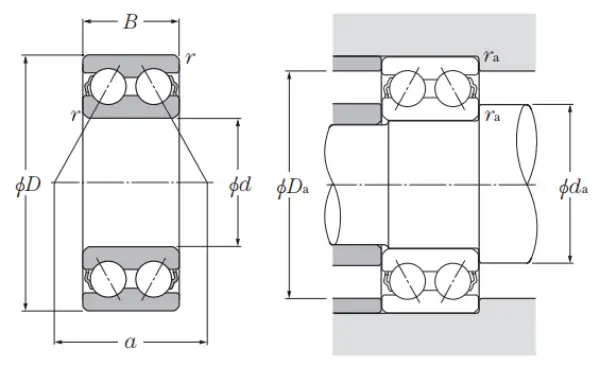

Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
34.900 mm
r
1.500 mm
Contact Angle
32 º
a
50.000 mm
da min
43.500 mm
Da max
71.500 mm
ras max
1.500 mm
