NTN 3310C3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
96000 N
Dynamic Load Rating
87500 N
Enclosure
Open
Weight
1.893 kg
Operating Temperature Range
-40 to 120 ºC

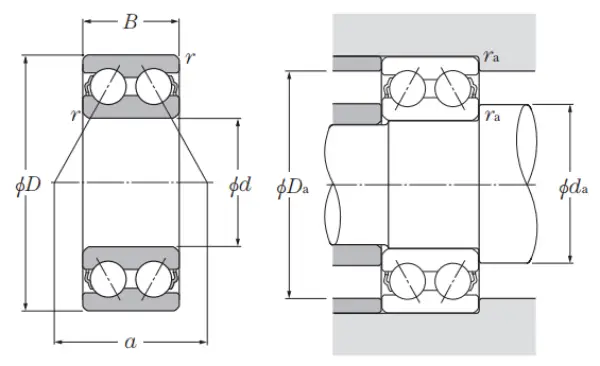

Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
44.400 mm
r
2.000 mm
Contact Angle
32 º
a
67.000 mm
da min
60.000 mm
Da max
100.000 mm
ras max
2.000 mm
