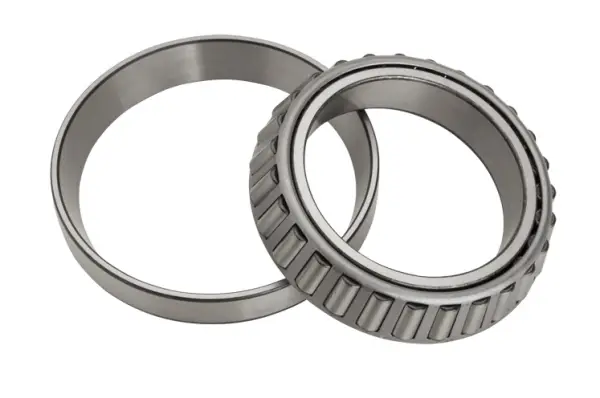

NTN 33895/33822
Tapered Roller Set - Metric Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Style
Cone & Cup
Precision Rating
Class 4
Cone Number
33895
Cup Number
33822
Configuration
One
Lubrication
w/o Oil Hole
e (Axial Load Factor)
0.33
Y2 (Axial Load Factor)
1.82
Static Load Rating
139000 N
Dynamic Load Rating
107000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
53.975 mm
D
95.250 mm
C
22.225 mm
B
28.575 mm
a (Effective Load Center)
-8.000 mm
T
27.783 mm
r
0.800 mm
R
1.5 mm
da
63.0 mm
db
60.0 mm
Da
86.0 mm
Db
90.0 mm
