NTN 38800

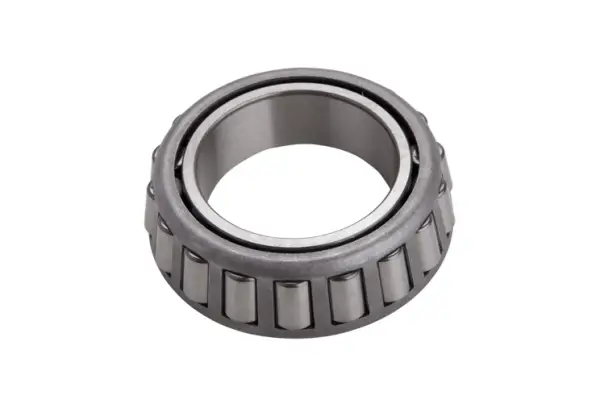

Cone for Tapered Roller Bearing - Inch Series and J Series

(BRAND):NTN
(Availability):In Stock
(EMAIL):info@noksbearings.com

Technical Specifications

Type Cone
Bore Type Round
Material Case Carburized Steel
Static Load Rating 570000 N
Dynamic Load Rating 226000 N
Operating Temperature Range -40 to 120 ºC
Y2 (Axial Load Factor) 1.64
e (Axial Load Factor) 0.37

Dimensional Specifications

B 263.525 mm
Wi 28.575 mm
R 1.500 mm
U 275.0 mm
V 275.0 mm
a (Effective Load Center) 20.300 mm
