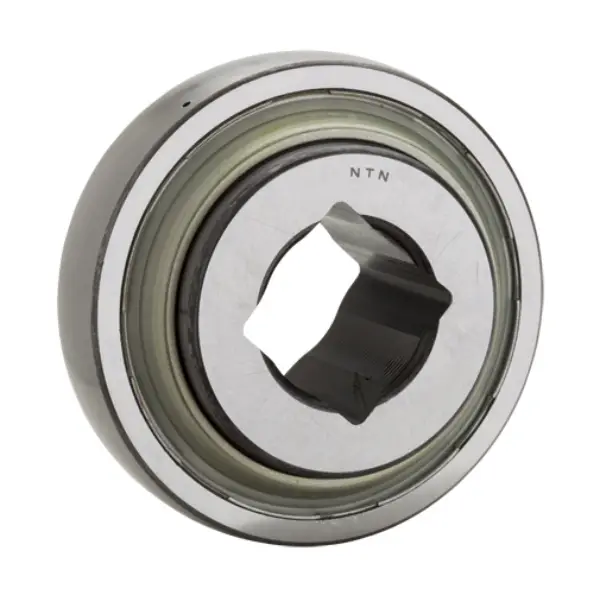

NTN 3AS14-2D1
Farm Implement Square Bore Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Square
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Lubrication
Relubricated
Static Load Rating
44000 N
Dynamic Load Rating
62000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

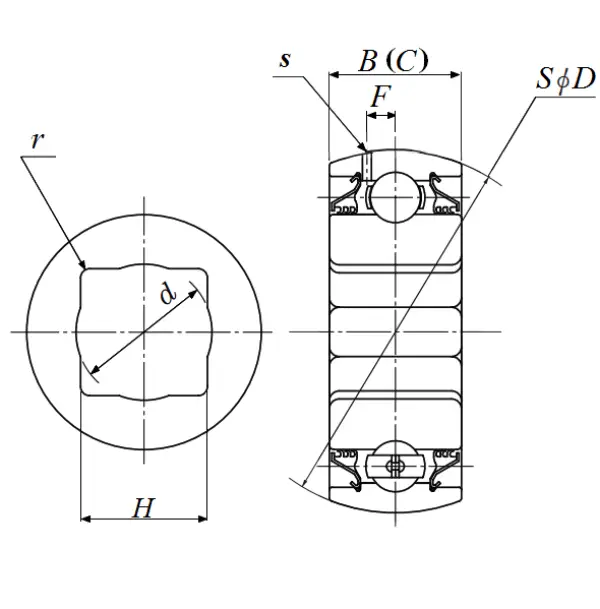

Dimensional Specifications
H
52.200 mm
D
125.000 mm
C
39.690 mm
B
39.690 mm
d
54.900 mm
r
4.000 mm
F
9.400 mm
s
3.000 mm
D - Tolerance
0/-0.020 mm
H - Tolerance
0.127/-0.127 mm
C - Tolerance
0/-0.150 mm
B - Tolerance
0/-0.150 mm
Shaft Size
50.800 mm
