NTN 423196
Double Row Tapered Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
e
0.40
Y1
1.68
Y2
2.50
Y0
1.64
Style
TDO
Precision Rating
Class 0
Configuration
Two
Static Load Rating
11100000 N
Dynamic Load Rating
5300000 N
Enclosure
Open
Weight
548.000 kg

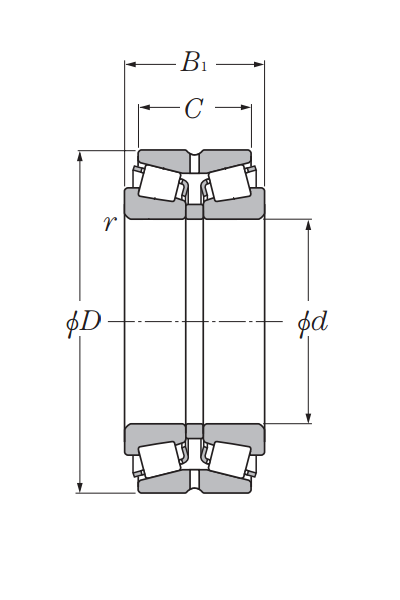

Dimensional Specifications
d
480.000 mm
D
790.000 mm
C
248.000 mm
B1
310.000 mm
r
7.500 mm
