NTN 4R5405
Quadruple Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Material
Pin Type Cage
Precision
ISO Class 0 (RBEC 1)
Configuration
Four
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
6850000 N
Dynamic Load Rating
2580000 N
Enclosure
Open
Weight
105.000 kg
Operating Temperature Range
-40 to 120 ºC

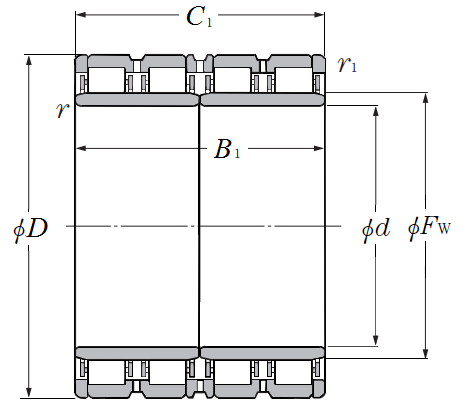

Dimensional Specifications
d
270.000 mm
D
380.000 mm
B1
280.000 mm
C1
280.000 mm
Fw
299.700 mm
r
2.500 mm
r1
2.500 mm
