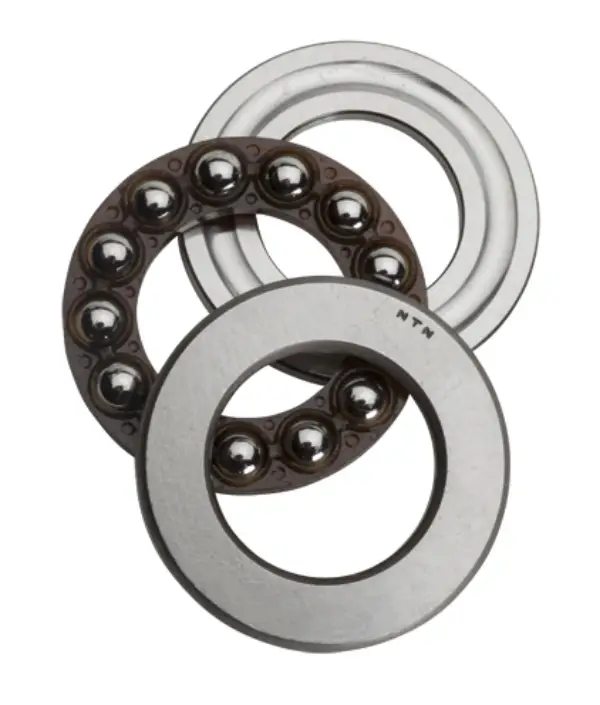

NTN 51204C3
Single Direction Thrust Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Thrust Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Molded
Cage Material
Resin
Ball Material
Steel
Limiting Speed - Oil
5900 RPM
Limiting Speed - Grease
4100 RPM
Seal Type
None
Seal Material
None
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
37500 N
Dynamic Load Rating
22300 N
Enclosure
Open
Weight
0.081 kg
Operating Temperature Range
-40 to 120 ºC

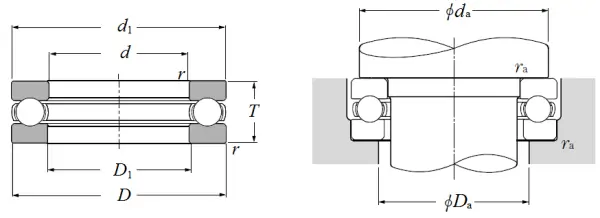

Dimensional Specifications
d
20.000 mm
D1
22.000 mm
d1
40.000 mm
D
40.000 mm
T
14.000 mm
r
0.600 mm
da min
32.000 mm
Da max
32.000 mm
ras max
0.600 mm
