NTN 51305C3 Single Direction Thrust Ball Bearing Overview

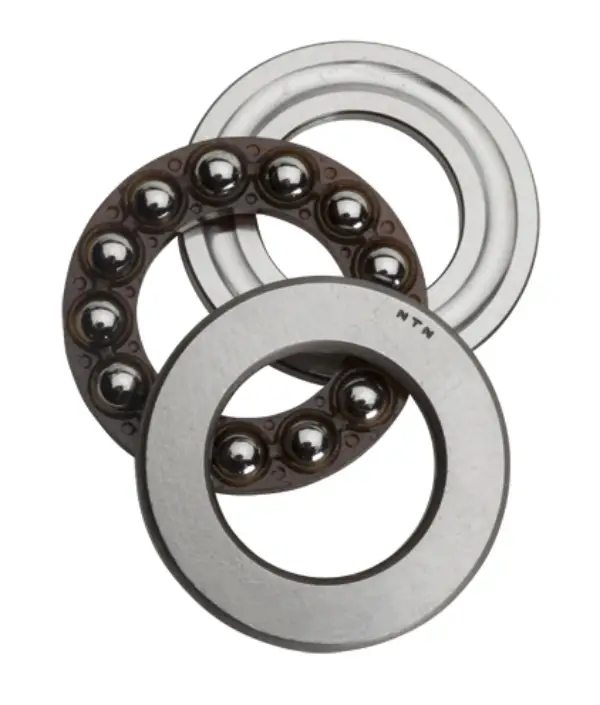

The NTN 51305C3 is a single direction thrust ball bearing with a round bore, straight outside ring, open enclosure, and C3 radial internal clearance. It uses high carbon chrome steel bearing components, a pressed steel cage, and steel balls.
What are the basic identifying details of the 51305C3?
- Brand: NTN
- Model: 51305C3
- Series: Single Direction Thrust Ball Bearing
- Configuration: One
- Seal or enclosure: Open, with no seal
- Internal clearance: C3
51305C3 Dimensional and Material Specifications

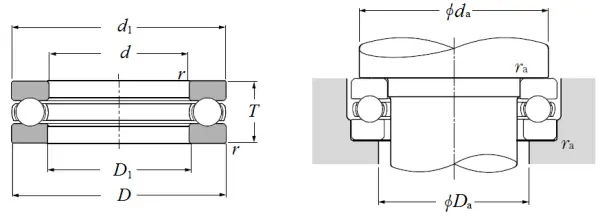

The supplied dimensional data lists a 25.000 mm bore, 52.000 mm outside diameter, and 18.000 mm overall height. The bearing also includes related shoulder and fillet dimensions for installation reference.
What dimensions and materials are provided for this NTN thrust bearing?
- d: 25.000 mm
- D: 52.000 mm
- T: 18.000 mm
- D1: 27.000 mm
- d1: 52.000 mm
- r: 1.000 mm
- da min: 41.000 mm
- Da max: 41.000 mm
- ras max: 1.000 mm
- Material: High carbon chrome steel
- Cage: Pressed steel cage
- Ball material: Steel
- Weight: 0.162 kg
51305C3 Performance and Operating Data
The product data includes static and dynamic load ratings, limiting speeds with oil and grease, and an operating temperature range. These values are provided as published specifications for the 51305C3 bearing.
What performance values are stated in the supplied product data?
- Static load rating: 61500 N
- Dynamic load rating: 35500 N
- Limiting speed, oil: 4600 RPM
- Limiting speed, grease: 3200 RPM
- Operating temperature range: -40 to 120 ºC
- Seal type and seal material: None
