(BRAND): NTN
(Availability):In Stock

Detailed data of 51317 Single Direction Thrust Ball Bearing

Technical Specifications

Type Thrust Ball Bearing
Bore Type Round
Outside Ring Type Straight
Material High Carbon Chrome Steel
Cage Type Pressed
Cage Material Steel
Ball Material Steel
Limiting Speed - Oil 1600 RPM
Limiting Speed - Grease 1100 RPM
Seal Type None
Seal Material None
Configuration One
Radial Internal Clearance CN
Static Load Rating 490000 N
Dynamic Load Rating 201000 N
Enclosure Open
Weight 3.520 kg
Operating Temperature Range -40 to 120 ºC

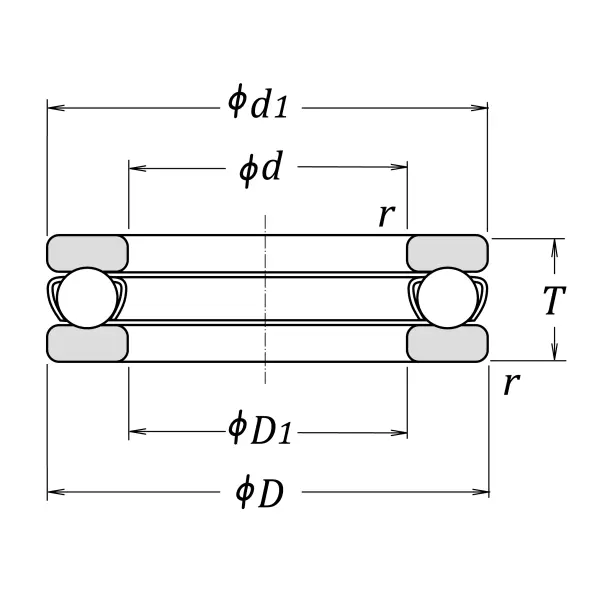

Dimensional Specifications

d 85.000 mm
D1 88.000 mm
d1 150.000 mm
D 150.000 mm
T 49.000 mm
r 1.500 mm

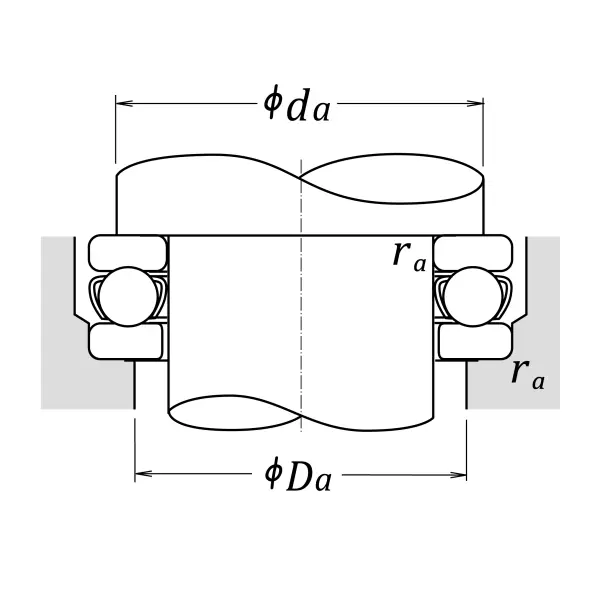

da min 124.000 mm
Da max 124.000 mm
ras max 1.500 mm

NTN 51317 Single Direction Thrust Ball Bearing Overview

The NTN 51317 is part of the Single Direction Thrust Ball Bearing series and is listed within NTN ball bearings for thrust ball bearing selection. The supplied data identifies a round bore, straight outside ring, open enclosure, and CN radial internal clearance.

What is the bearing configuration?

This bearing is specified as a thrust ball bearing with a single-direction design. It has no seal, an open enclosure, a pressed steel cage, steel balls, and high carbon chrome steel bearing material.

51317 Dimensional and Mechanical Specifications

  • Bore diameter d: 85.000 mm
  • Outside diameter D: 150.000 mm
  • Height T: 49.000 mm
  • D1: 88.000 mm
  • d1: 150.000 mm
  • Chamfer dimension r: 1.500 mm
  • da minimum: 124.000 mm
  • Da maximum: 124.000 mm
  • ras maximum: 1.500 mm

What load and speed values are provided?

The supplied product data lists a static load rating of 490000 N and a dynamic load rating of 201000 N. The limiting speed is 1600 RPM with oil and 1100 RPM with grease, subject to the actual operating arrangement.

Material, Temperature, and Weight Details for the NTN 51317

The bearing components are specified with high carbon chrome steel bearing material, a pressed steel cage, and steel ball material. The listed weight is 3.520 kg, and the stated operating temperature range is -40 to 120 ºC.

What should be checked before selecting this bearing?

Verify the model 51317, 85 mm bore, 150 mm outside diameter, 49 mm height, open configuration, and interface dimensions against the required assembly. Performance should be assessed using the supplied ratings, speed values, temperature range, and actual installation conditions.
