(BRAND): NTN
(Availability):In Stock

Detailed data of 51326 Single Direction Thrust Ball Bearing

Technical Specifications

Type Thrust Ball Bearing
Bore Type Round
Outside Ring Type Straight
Material High Carbon Chrome Steel
Cage Type Machined
Cage Material Brass
Ball Material Steel
Limiting Speed - Oil 1000 RPM
Limiting Speed - Grease 720 RPM
Seal Type None
Seal Material None
Precision ISO Class 0
Configuration One
Radial Internal Clearance CN
Static Load Rating 960000 N
Dynamic Load Rating 330000 N
Enclosure Open
Weight 12.700 kg
Operating Temperature Range -40 to 120 ºC

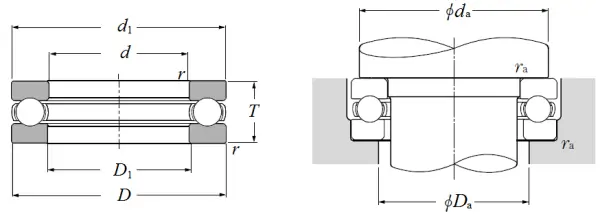

Dimensional Specifications

d 130.000 mm
D1 134.000 mm
d1 220.000 mm
D 225.000 mm
T 75.000 mm
r 2.100 mm
da min 186 mm
Da max 186.000 mm
ras max 2.000 mm

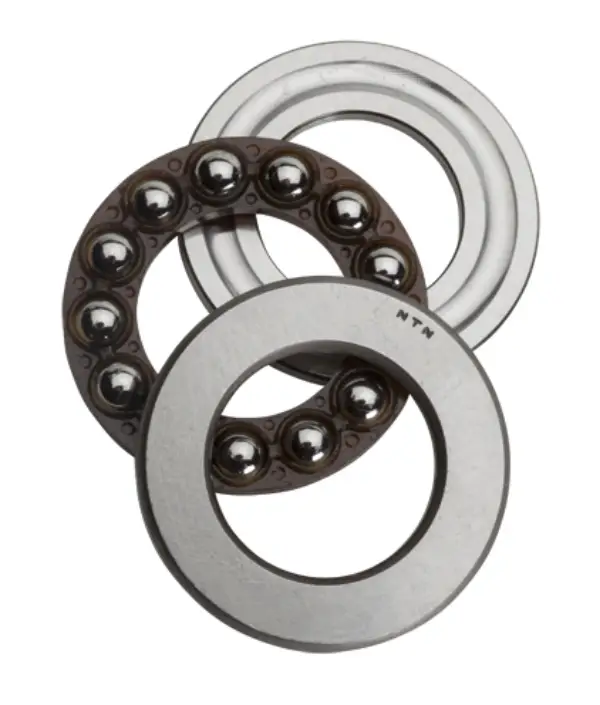

NTN 51326 Thrust Ball Bearing Overview

The NTN 51326 is part of the Single Direction Thrust Ball Bearing series. It has a round bore, straight outside ring, open enclosure, and no seals. The bearing is produced with high carbon chrome steel rings, steel balls, and a machined brass cage.

What type of bearing is the NTN 51326?

The 51326 is a thrust ball bearing configured for single-direction thrust loading. Its listed configuration is one radial, with CN internal clearance and ISO Class 0 precision.

51326 Dimensions and Weight

The dimensional specifications for the NTN 51326 include a bore of 130.000 mm, outside diameter of 225.000 mm, and width of 75.000 mm. Additional listed dimensions include D1 at 134.000 mm, d1 at 220.000 mm, and r at 2.100 mm.

  • da minimum: 186 mm
  • Da maximum: 186.000 mm
  • ras maximum: 2.00 mm
  • Weight: 12.700 kg

What are the bearing's principal boundary dimensions?

The principal boundary dimensions are 130.000 mm bore, 225.000 mm outside diameter, and 75.000 mm total width. These dimensions identify the bearing's basic installation envelope.

51326 Technical Performance Data

The NTN 51326 has a listed static load rating of 960000 N and a dynamic load rating of 330000 N. Limiting speeds are listed as 1000 RPM with oil lubrication and 720 RPM with grease lubrication. The stated operating temperature range is -40 to 120 ºC.

What lubrication and precision details are specified?

The bearing is an open, non-sealed design with ISO Class 0 precision and CN internal clearance. Its limiting speeds are listed separately for oil and grease lubrication, allowing comparison against the selected lubrication method.
