(BRAND): NTN
(Availability):In Stock

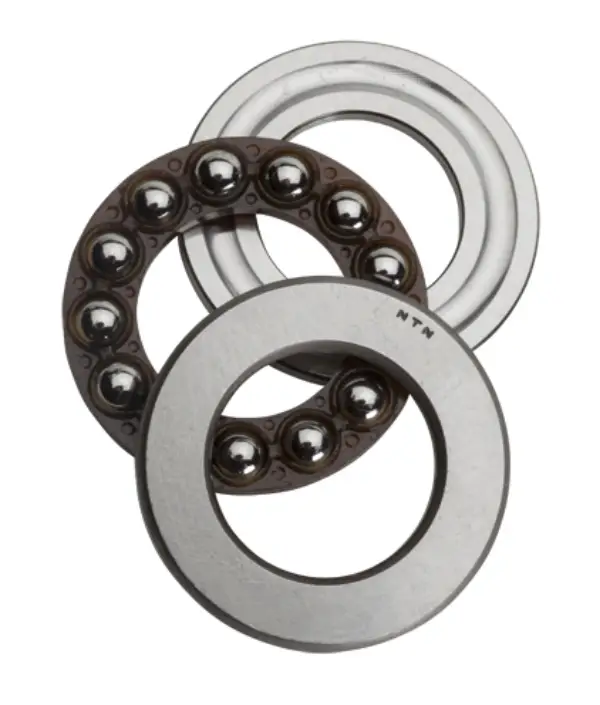

Detailed data of 51328 Single Direction Thrust Ball Bearing

Technical Specifications

Type Thrust Ball Bearing
Bore Type Round
Outside Ring Type Straight
Material High Carbon Chrome Steel
Cage Type Machined
Cage Material Brass
Ball Material Steel
Limiting Speed - Oil 960 RPM
Limiting Speed - Grease 670 RPM
Seal Type None
Seal Material None
Precision ISO Class 0
Configuration One
Radial Internal Clearance CN
Static Load Rating 1050000 N
Dynamic Load Rating 350000 N
Enclosure Open
Weight 15.300 kg
Operating Temperature Range -40 to 120 ºC

Dimensional Specifications

d 140.000 mm
D1 144.000 mm
d1 235.000 mm
D 240.000 mm
T 80.000 mm
r 2.100 mm
da min 199.000 mm
Da max 199.000 mm
ras max 2.000 mm

NTN 51328 Thrust Ball Bearing Overview

The NTN 51328 is a Single Direction Thrust Ball Bearing with a round bore, straight outside ring, open enclosure, and no seals. It is constructed with high carbon chrome steel rings, steel balls, and a machined brass cage. The bearing has CN radial internal clearance and ISO Class 0 precision.

What are the basic identifying details of the 51328?

  • Brand: NTN
  • Model: 51328
  • Series: Single Direction Thrust Ball Bearing
  • Bore type: Round
  • Outside ring type: Straight
  • Configuration: One

51328 Dimensions and Physical Specifications

The NTN 51328 has a bore diameter of 140.000 mm, an outside diameter of 240.000 mm, and a height of 80.000 mm. Additional dimensional and mass values are listed in the supplied product data.

What dimensions are provided for the bearing?

  • d: 140.000 mm
  • D: 240.000 mm
  • T: 80.000 mm
  • D1: 144.000 mm
  • d1: 235.000 mm
  • r: 2.100 mm
  • da min: 199.000 mm
  • Da max: 199.000 mm
  • ras max: 2.000 mm
  • Weight: 15.300 kg

Performance and Technical Data for the NTN 51328

The supplied technical data includes static and dynamic load ratings, lubricant-related limiting speeds, materials, precision class, clearance, and operating temperature range. The bearing uses an open design without seal material or seal protection.

What technical performance values are specified?

  1. Static load rating: 1050000 N
  2. Dynamic load rating: 350000 N
  3. Limiting speed with oil: 960 RPM
  4. Limiting speed with grease: 670 RPM
  5. Precision: ISO Class 0
  6. Internal clearance: CN
  7. Operating temperature range: -40 to 120 ºC
  8. Ring material: High carbon chrome steel
  9. Ball material: Steel
  10. Cage: Machined brass cage
