NTN 51330 Single Direction Thrust Ball Bearing Overview
What is the NTN 51330?

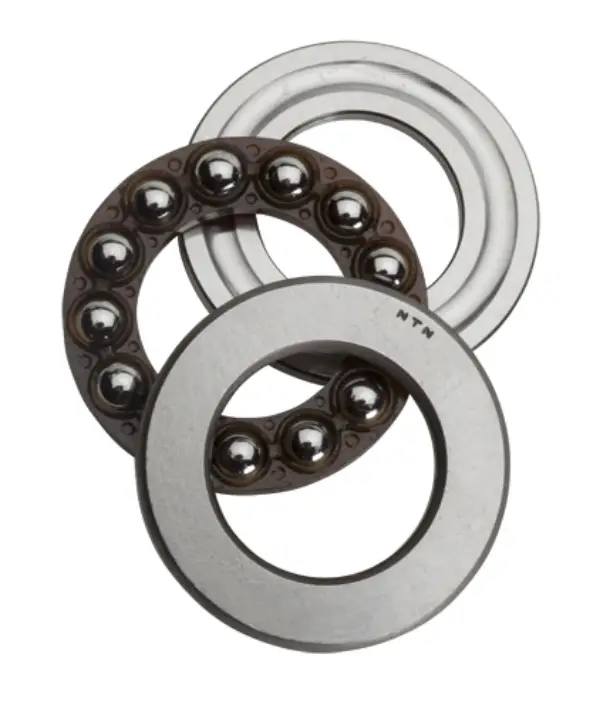

The NTN 51330 is a Single Direction Thrust Ball Bearing with a round bore, straight outside ring, open enclosure, and no seals. It uses high carbon chrome steel rings, a machined brass cage, and steel balls.
- Brand: NTN
- Series: Single Direction Thrust Ball Bearing
- Bore type: Round
- Outside ring type: Straight
- Configuration: One
- Radial internal clearance: CN

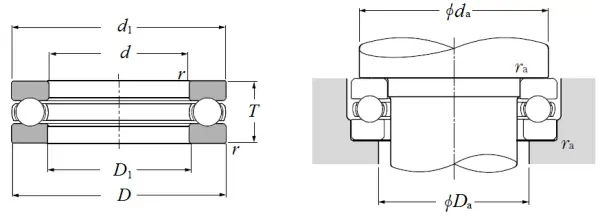

51330 Dimensions and Weight
What dimensions are listed for the 51330?
The supplied dimensional data for the 51330 includes the following measurements:
- d: 150.000 mm
- D: 250.000 mm
- T: 80.000 mm
- D1: 154.000 mm
- d1: 245.000 mm
- r: 2.100 mm
- da min: 209.000 mm
- Da max: 209.000 mm
- ras max: 2.000 mm
- Weight: 16.100 kg
51330 Technical Performance Details
What ratings and operating values are provided?
The supplied product data lists load ratings, limiting speeds, and an operating temperature range for the 51330. Actual suitability depends on the installed arrangement and operating conditions.
- Static load rating: 1,130,000 N
- Dynamic load rating: 360,000 N
- Limiting speed with oil: 940 RPM
- Limiting speed with grease: 660 RPM
- Operating temperature range: -40 to 120 ºC
