NTN 5201
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
17000 RPM
Limiting Speed - Grease
13000 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
5050 N
Dynamic Load Rating
9150 N
Enclosure
Open
Weight
0.059 kg
Operating Temperature Range
-40 to 120 ºC

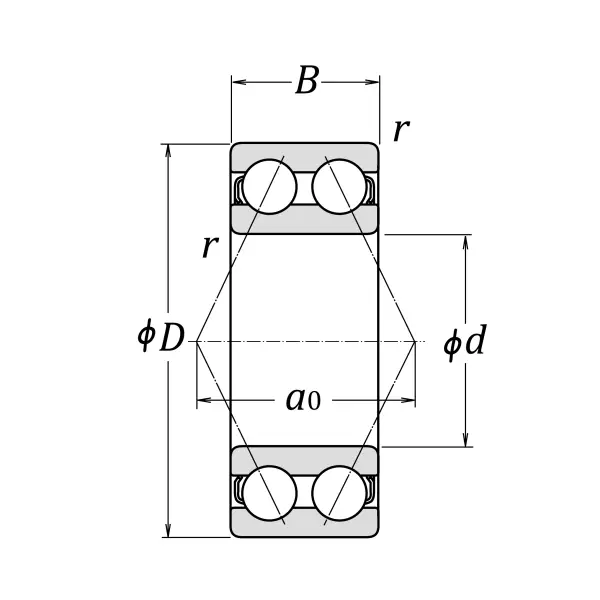

Dimensional Specifications
d
12.000 mm
D
32.000 mm
B
15.900 mm
r
0.600 mm
Contact Angle
30 º
a
19.000 mm

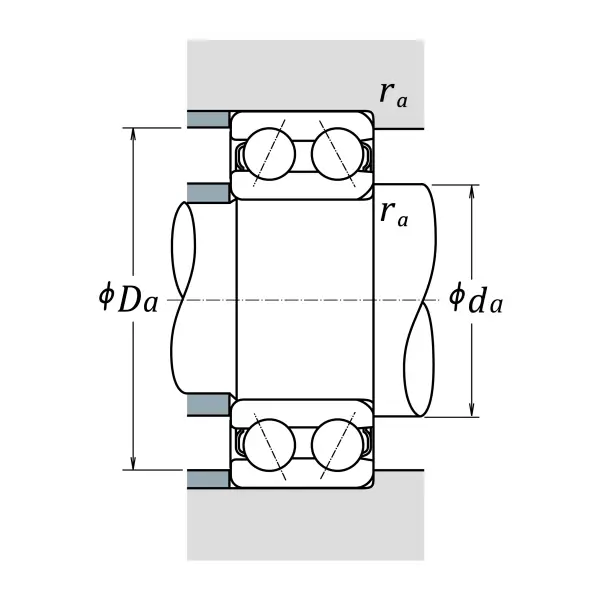

da min
16.500 mm
Da max
27.500 mm
ras max
0.600 mm
