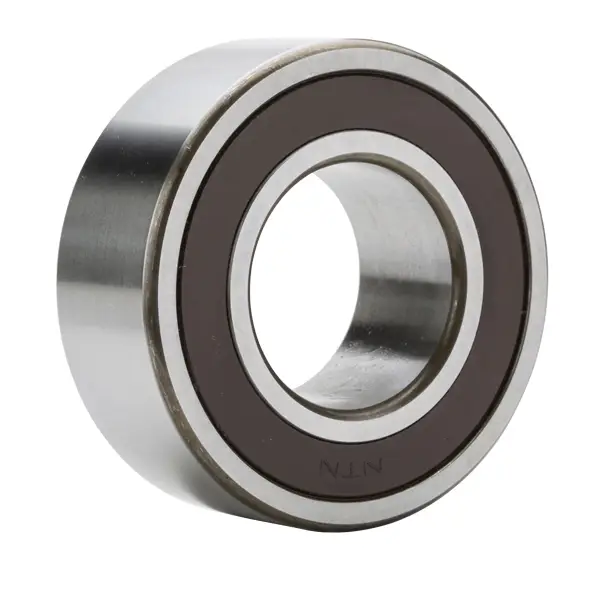

NTN 5202LLUH2000B
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
13000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
7100 N
Dynamic Load Rating
11800 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
15.000 mm
D
35.000 mm
B
15.900 mm
r
0.600 mm
Contact Angle
30 º
a
18.000 mm
