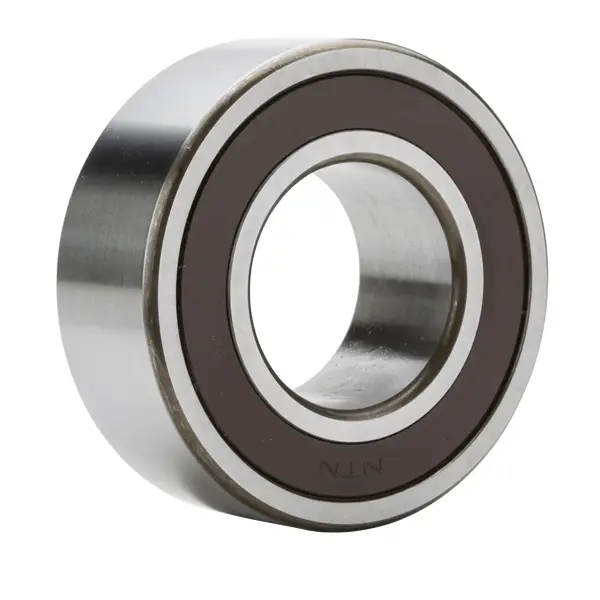

NTN 5203CLLU
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
11000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
9050 N
Dynamic Load Rating
14600 N
Enclosure
Double Sealed
Weight
0.097 kg
Operating Temperature Range
-40 to 120 ºC

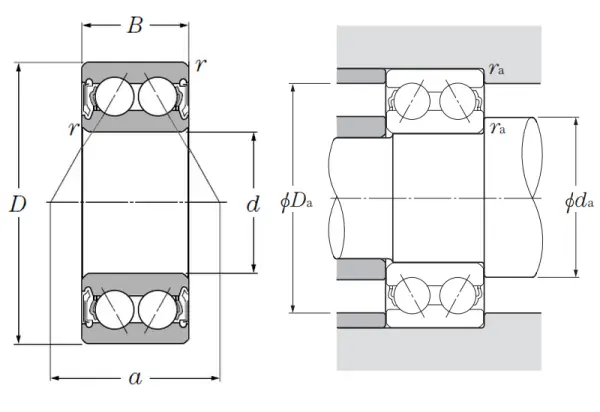

Dimensional Specifications
d
17.000 mm
D
40.000 mm
B
17.500 mm
r
0.600 mm
Contact Angle
25 º
a
24.000 mm
Da max
35.000 mm
ras max
0.600 mm
