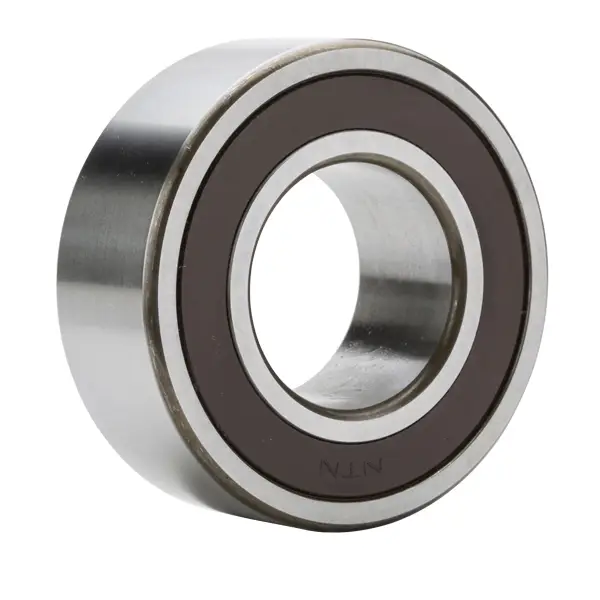

NTN 5203EEG15
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
12000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
9000 N
Dynamic Load Rating
14200 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

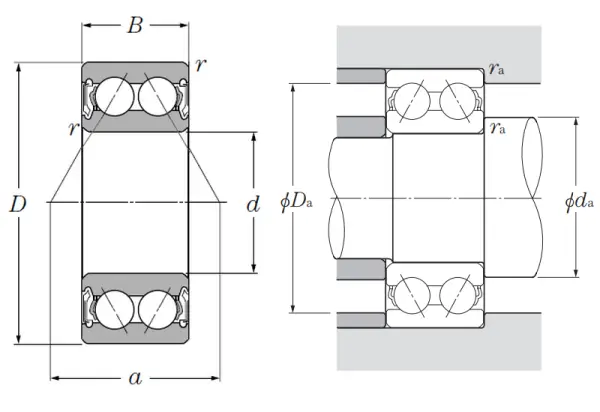

Dimensional Specifications
d
17.000 mm
D
40.000 mm
B
17.500 mm
r
0.600 mm
Contact Angle
25 º
a
20.400 mm
da min
21.000 mm
Da max
36.000 mm
ras max
0.600 mm
