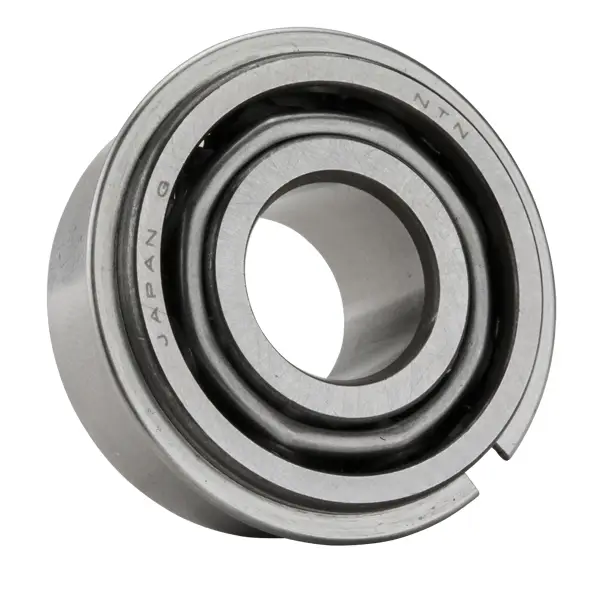

NTN 5203NR
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
15000 RPM
Limiting Speed - Grease
11000 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
9050 N
Dynamic Load Rating
14600 N
Enclosure
Open
Weight
0.099 kg
Operating Temperature Range
-40 to 120 ºC

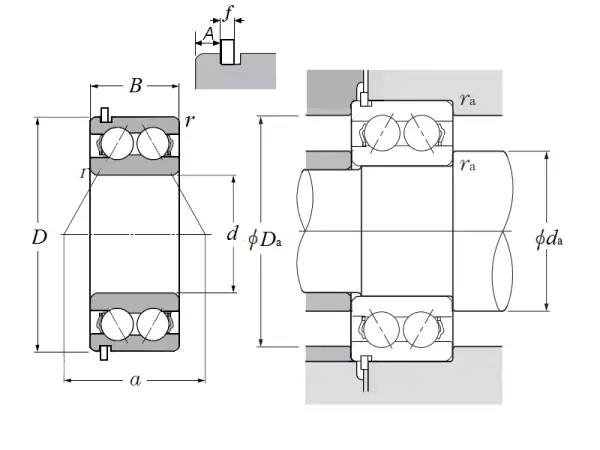

Dimensional Specifications
d
17.000 mm
D
40.000 mm
B
17.500 mm
A
1.900 mm
D2
44.600 mm
D1
37.850 mm
f
1.350 mm
r
0.600 mm
Contact Angle
25 º
a
24.000 mm
da min
22.000 mm
Da max
35.000 mm
ras max
0.600 mm
