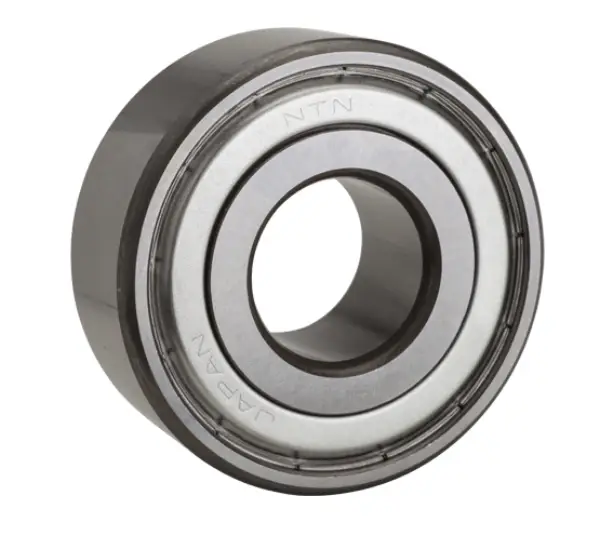

NTN 5208CZ
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
5600 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
33500 N
Dynamic Load Rating
44000 N
Enclosure
Single Shielded
Weight
0.619 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
30.200 mm
r
1.100 mm
a
47.500 mm
da min
47.000 mm
Da max
73.000 mm
ras max
1.000 mm
