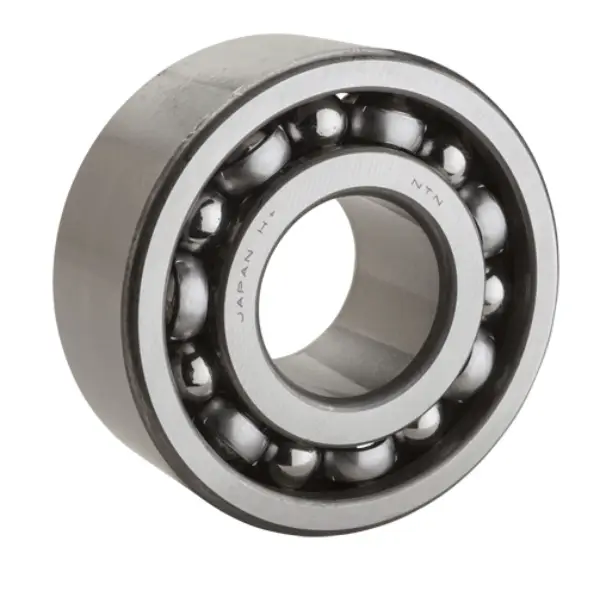

NTN 5208W
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
6600 RPM
Limiting Speed - Grease
4900 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
46480 N
Dynamic Load Rating
52520 N
Enclosure
Open
Weight
0.619 kg
Operating Temperature Range
-40 to 120 ºC

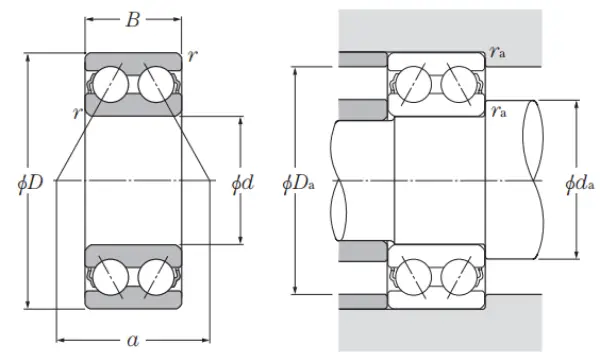

Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
30.200 mm
r
1.100 mm
Contact Angle
24 º
a
47.500 mm
