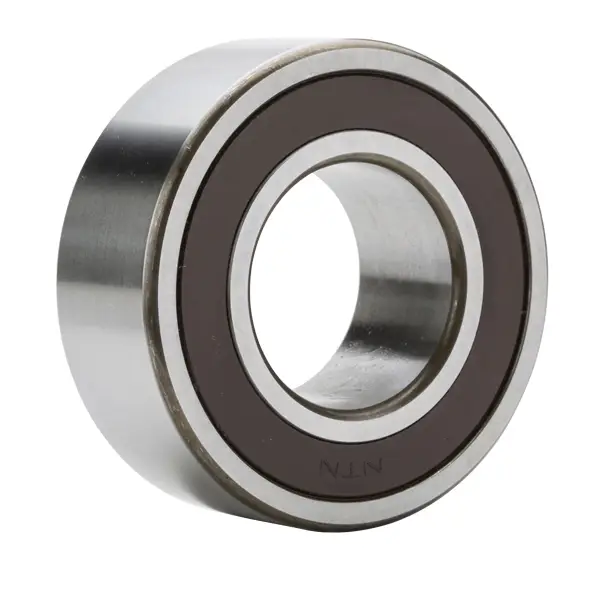

NTN 5210ALLBD1XC2
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C2
Static Load Rating
35000 N
Dynamic Load Rating
39000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
30.200 mm
r
1.100 mm
Contact Angle
30 º
da min
57.000 mm
Da max
83.000 mm
ras max
1.000 mm
