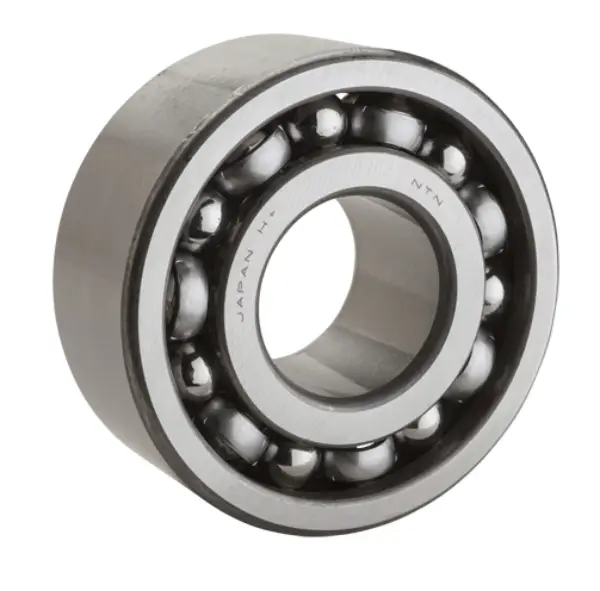

NTN 5210W
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Through Hardened Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
4000 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
55230 N
Dynamic Load Rating
56700 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

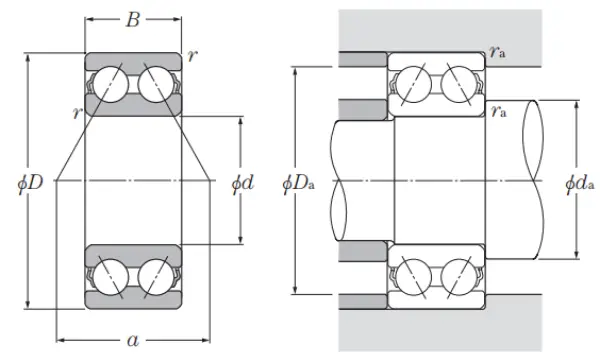

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
30.162 mm
r
1.016 mm
Contact Angle
24 º
