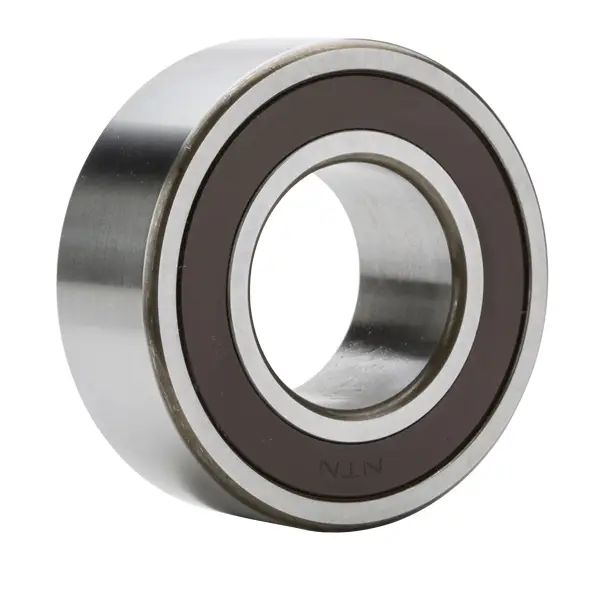

NTN 5211CLLU
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4300 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
49000 N
Dynamic Load Rating
56000 N
Enclosure
Double Sealed
Weight
0.987 kg
Operating Temperature Range
-40 to 120 ºC

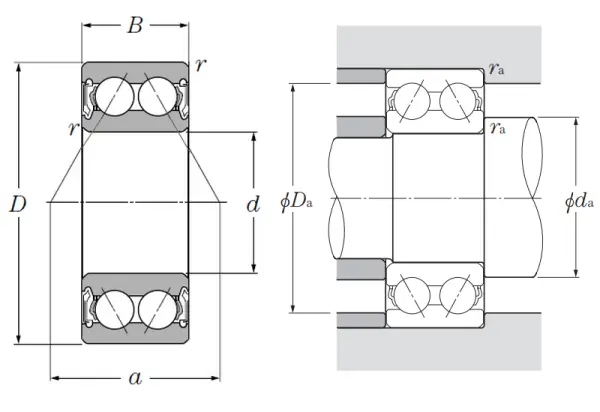

Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
33.300 mm
r
1.500 mm
Contact Angle
25 º
a
60.500 mm
Da max
91.000 mm
ras max
1.500 mm
