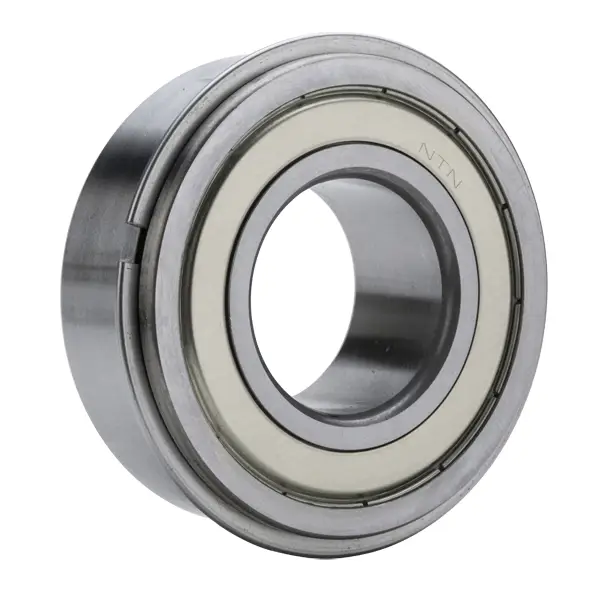

NTN 5211T2NRZZ
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
4300 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
49500 N
Dynamic Load Rating
59000 N
Enclosure
Double Shielded
Weight
0.876 kg
Operating Temperature Range
-40 to 120 ºC

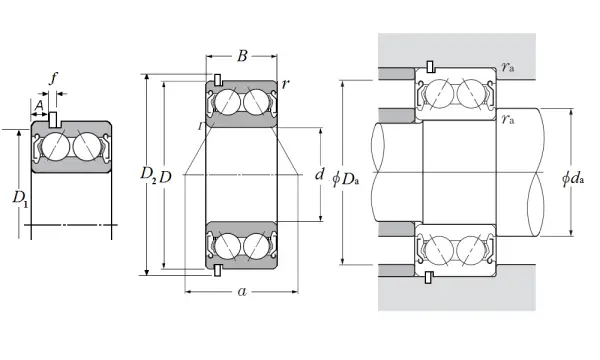

Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
33.300 mm
A
3.070 mm
D2
106.500 mm
D1
96.290 mm
f
2.700 mm
r
1.500 mm
a
49.900 mm
