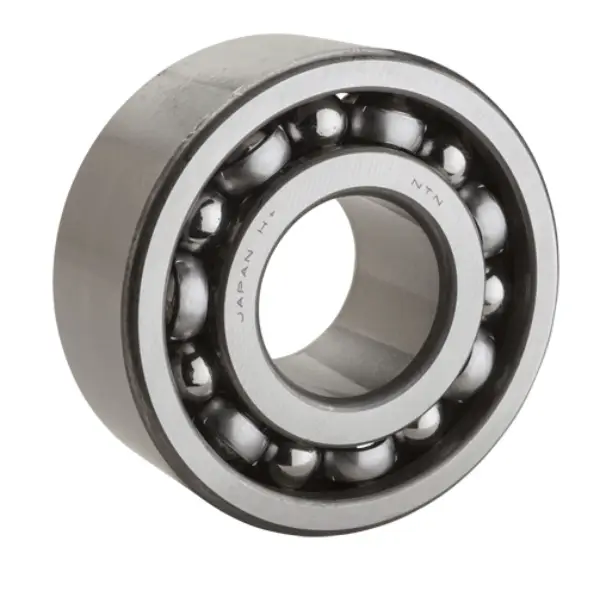

NTN 5211WH
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4500 RPM
Limiting Speed - Grease
3600 RPM
Precision
Class 0
Configuration
Two
Static Load Rating
71700 N
Dynamic Load Rating
72400 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

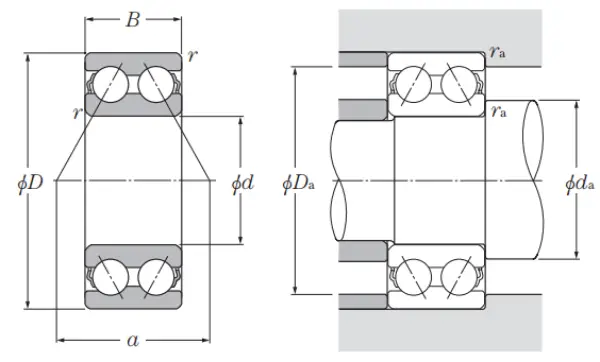

Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
33.337 mm
r
1.524 mm
Contact Angle
24 º
