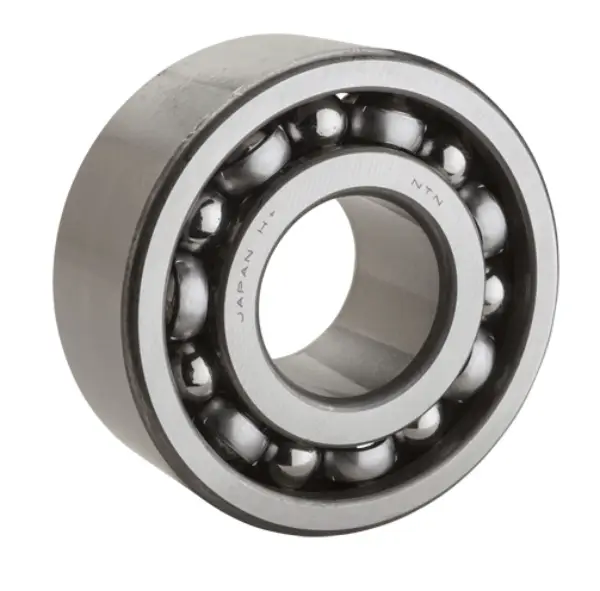

NTN 5212T2G15
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
3900 RPM
Precision
Class 0
Configuration
Two
Static Load Rating
61000 N
Dynamic Load Rating
72000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

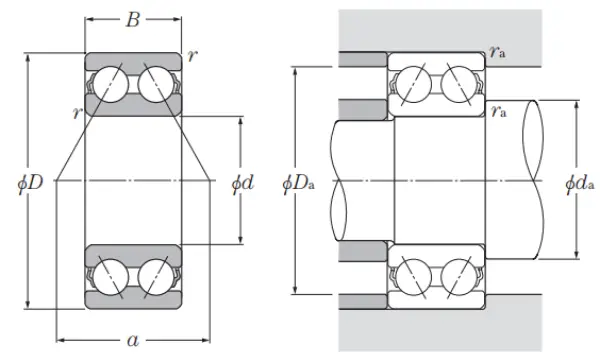

Dimensional Specifications
d
60.000 mm
D
110.000 mm
B
36.500 mm
r
1.500 mm
Contact Angle
30 º
a
55.100 mm
