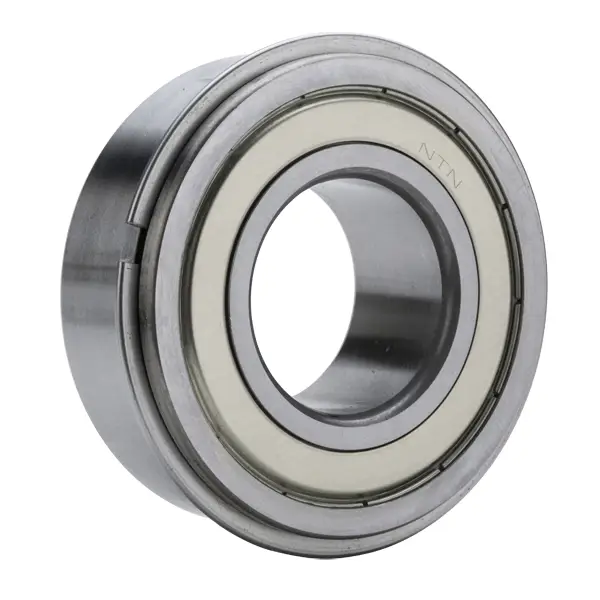

NTN 5213NRZZG15
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
3500 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
73000 N
Dynamic Load Rating
80000 N
Enclosure
Double Shielded
Weight
1.520 kg
Operating Temperature Range
-40 to 120 ºC

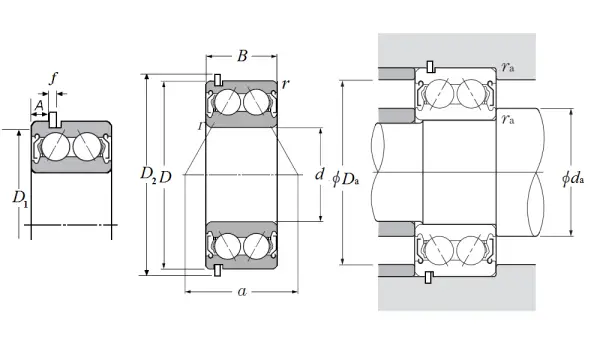

Dimensional Specifications
d
65.000 mm
D
120.000 mm
B
38.100 mm
A
3.860 mm
D2
129.700 mm
D1
114.710 mm
f
3.100 mm
r
1.500 mm
a
59.800 mm
