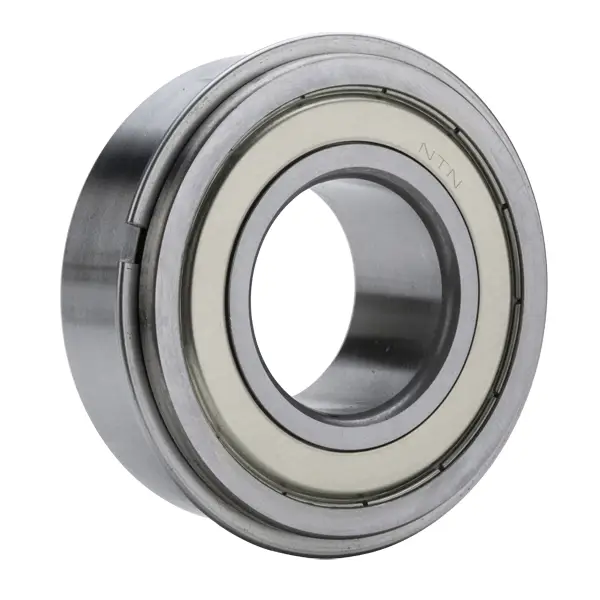

NTN 5214T2ZZNR
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
3400 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
76000 N
Dynamic Load Rating
84000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

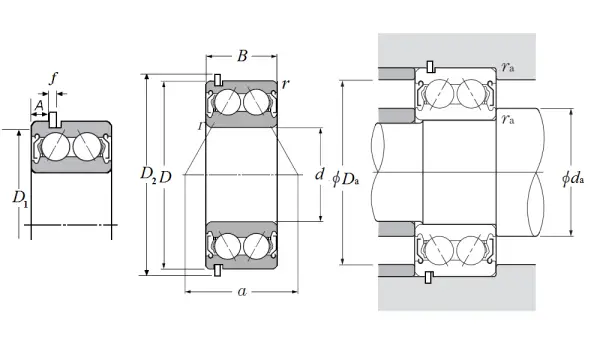

Dimensional Specifications
d
70.000 mm
D
125.000 mm
B
39.700 mm
A
3.860 mm
D2
134.700 mm
D1
119.710 mm
f
3.100 mm
r
1.500 mm
a
61.600 mm
