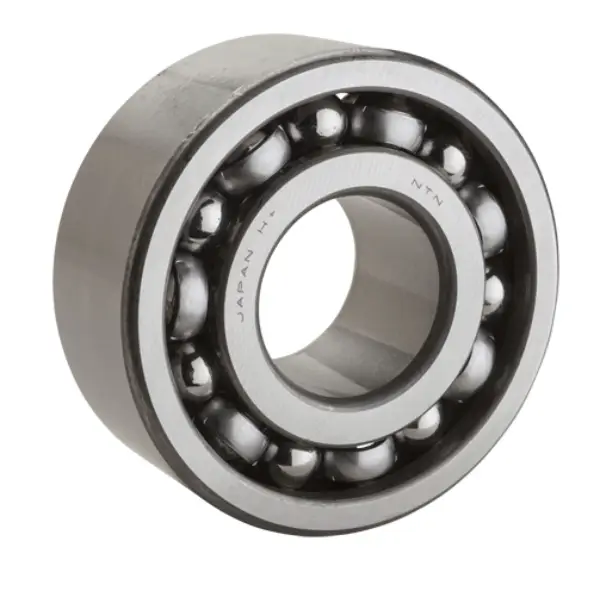

NTN 5215WC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3600 RPM
Limiting Speed - Grease
2700 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
120310 N
Dynamic Load Rating
111860 N
Enclosure
Open
Weight
1.868 kg
Operating Temperature Range
-40 to 120 ºC

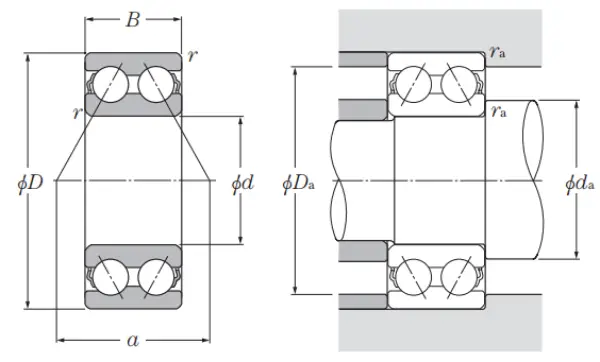

Dimensional Specifications
d
75.000 mm
D
130.000 mm
B
41.300 mm
r
1.500 mm
Contact Angle
24 º
a
78.000 mm
