NTN 5216
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3800 RPM
Limiting Speed - Grease
3000 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
93000 N
Dynamic Load Rating
99000 N
Enclosure
Open
Weight
2.433 kg
Operating Temperature Range
-40 to 120 ºC

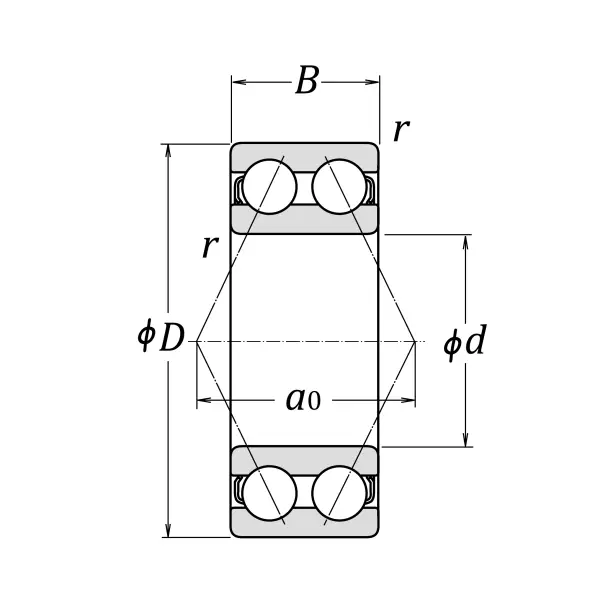

Dimensional Specifications
d
80.000 mm
D
140.000 mm
B
44.400 mm
r
2.000 mm
Contact Angle
25 º
a
83.500 mm

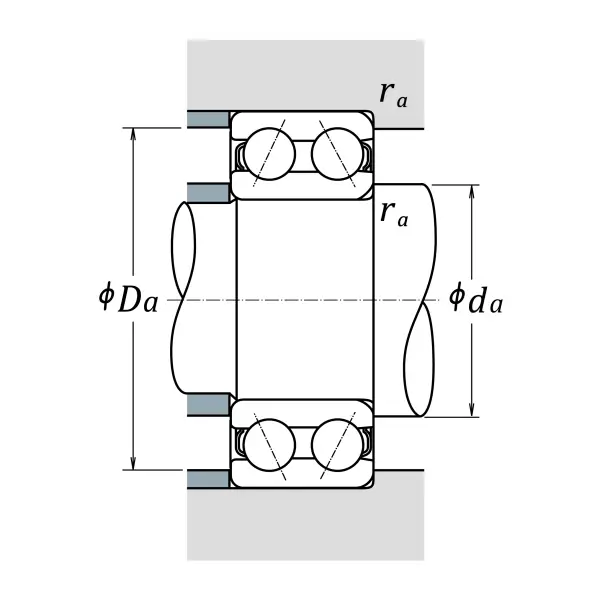

da min
90.000 mm
Da max
130.000 mm
ras max
2.000 mm
