NTN 5218
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Cylindrical
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3000 RPM
Limiting Speed - Grease
2200 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
129000 N
Dynamic Load Rating
140120 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

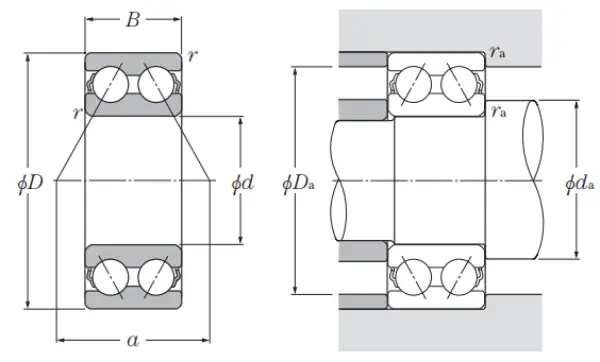

Dimensional Specifications
d
90.000 mm
D
160.000 mm
B
52.400 mm
r
2.000 mm
Contact Angle
25 º
