NTN 5222
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Aluminum
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
211300 N
Dynamic Load Rating
211300 N
Enclosure
Open
Weight
8.720 kg
Operating Temperature Range
-40 to 120 ºC

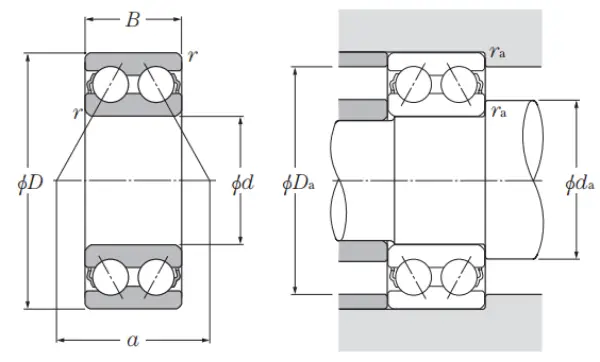

Dimensional Specifications
d
110.000 mm
D
200.000 mm
B
69.800 mm
r
2.100 mm
Contact Angle
30 º
