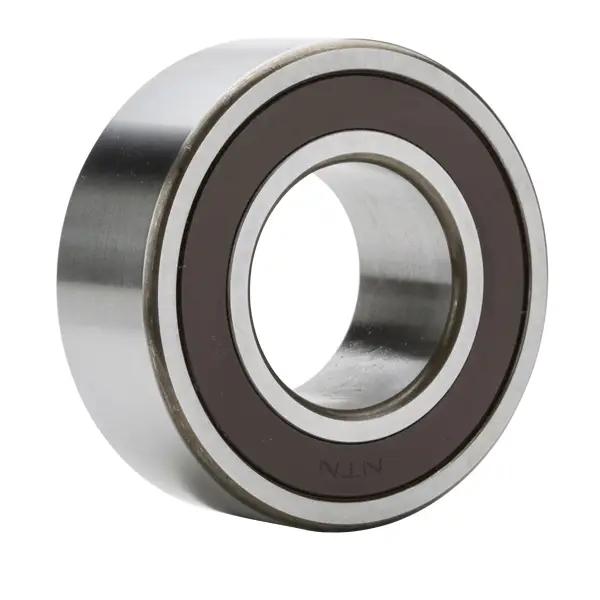

NTN 5302EEG15
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
11000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
10000 N
Dynamic Load Rating
15700 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

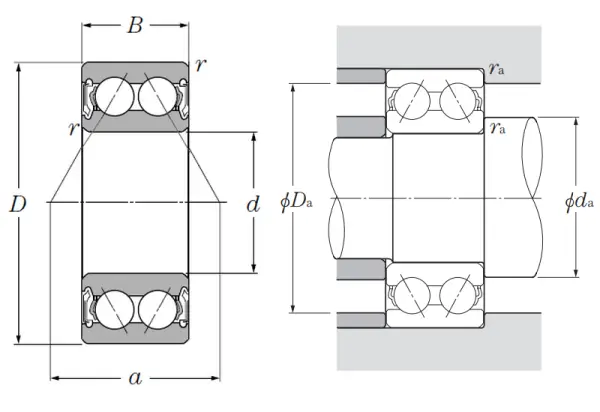

Dimensional Specifications
d
15.000 mm
D
42.000 mm
B
19.000 mm
r
1.000 mm
Contact Angle
25 º
a
21.500 mm
da min
20.000 mm
Da max
37.000 mm
ras max
1.000 mm
