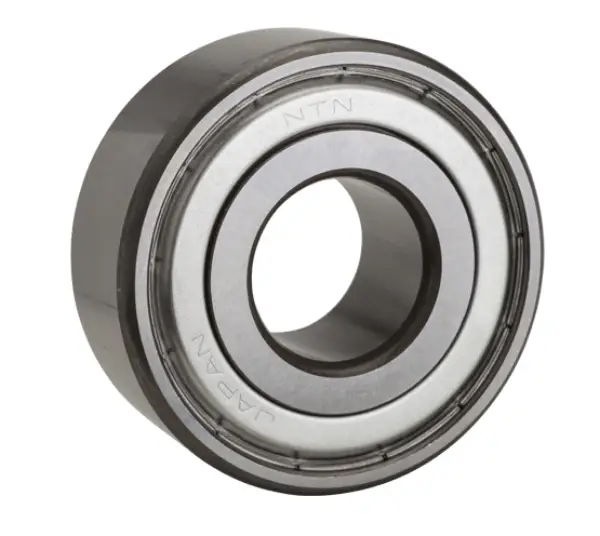

NTN 5305CZC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7500 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
20700 N
Dynamic Load Rating
32500 N
Enclosure
Single Shielded
Weight
0.340 kg
Operating Temperature Range
-40 to 120 ºC

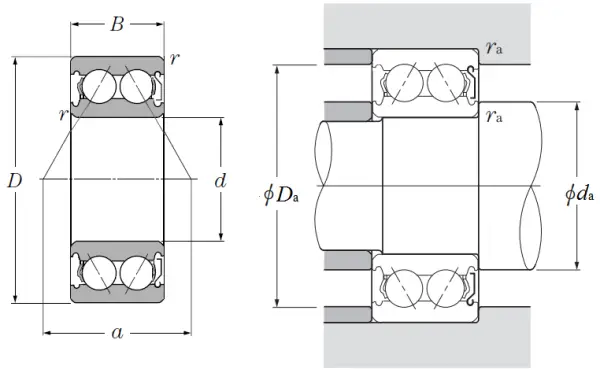

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
25.400 mm
r
1.100 mm
a
36.500 mm
da min
32.000 mm
Da max
55.000 mm
ras max
1.000 mm
