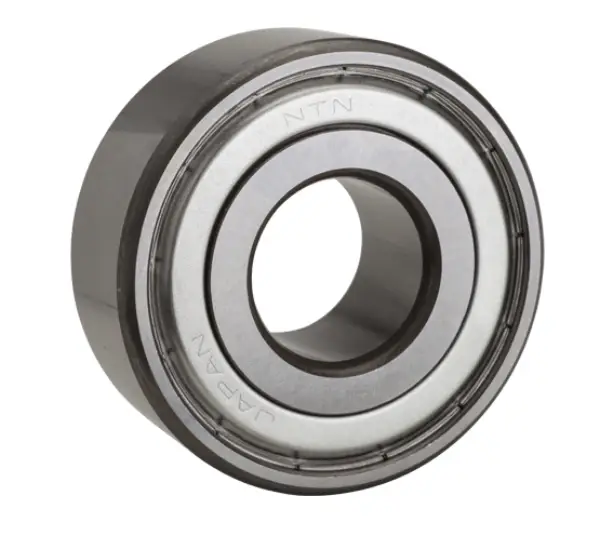

NTN 5305CZZC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7500 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
18200 N
Dynamic Load Rating
25200 N
Enclosure
Double Shielded
Weight
0.358 kg
Operating Temperature Range
-40 to 120 ºC

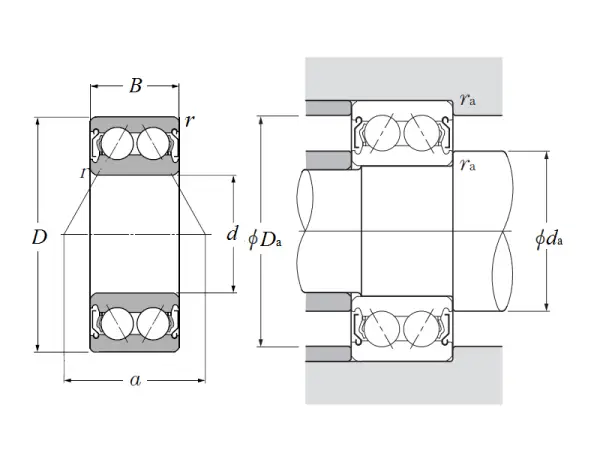

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
25.400 mm
r
1.100 mm
Contact Angle
25 º
a
36.500 mm
Da max
55.000 mm
ras max
1.000 mm
