NTN 5306NRC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
8500 RPM
Limiting Speed - Grease
6300 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
28100 N
Dynamic Load Rating
40500 N
Enclosure
Open
Weight
0.557 kg
Operating Temperature Range
-40 to 120 ºC

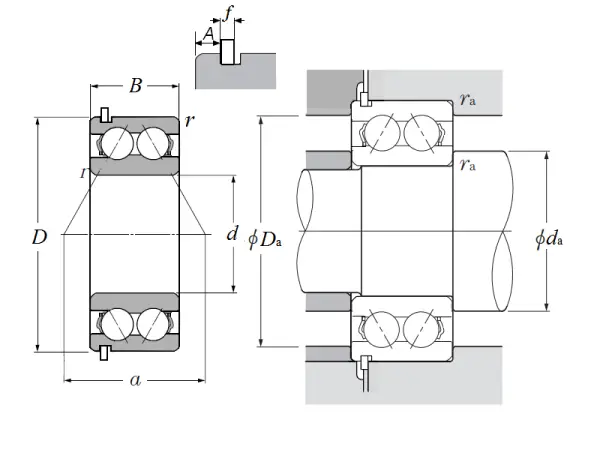

Dimensional Specifications
d
30.000 mm
D
72.000 mm
B
30.200 mm
A
3.070 mm
D2
78.600 mm
D1
68.300 mm
f
1.900 mm
r
1.100 mm
Contact Angle
25 º
a
43.000 mm
da min
37.000 mm
Da max
65.000 mm
ras max
1.000 mm
