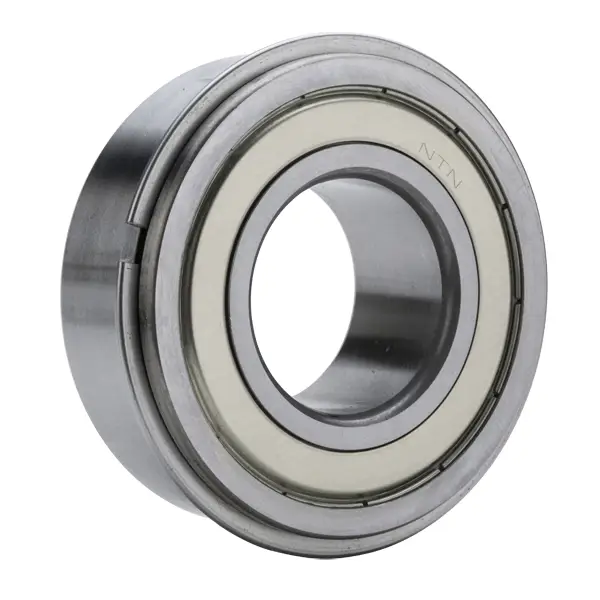

NTN 5307NRZZG15
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
5700 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
34500 N
Dynamic Load Rating
51000 N
Enclosure
Double Shielded
Weight
0.820 kg
Operating Temperature Range
-40 to 120 ºC

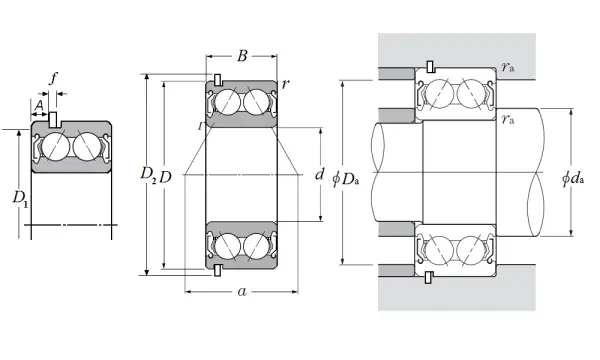

Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
34.900 mm
A
3.070 mm
D2
86.600 mm
D1
76.300 mm
f
1.900 mm
r
1.500 mm
a
41.500 mm
