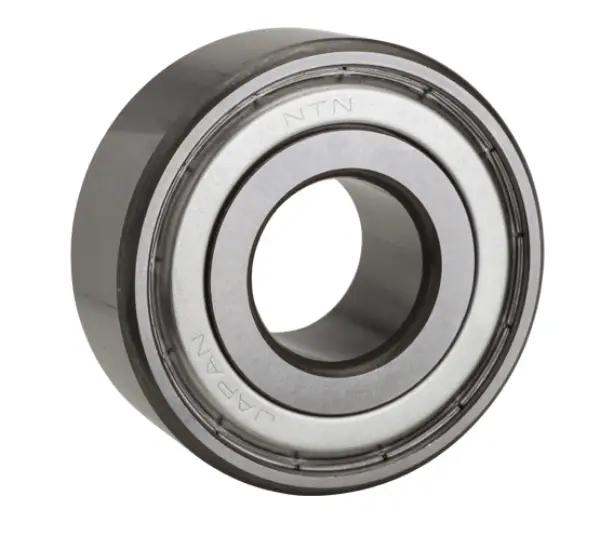

NTN 5309WSSC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
76710 N
Dynamic Load Rating
86930 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

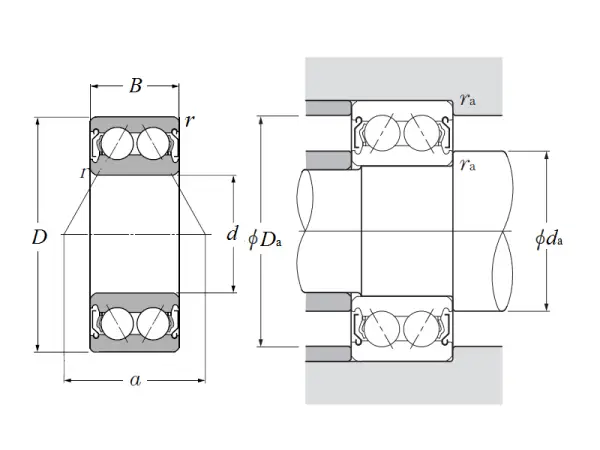

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
39.687 mm
r
1.524 mm
Contact Angle
24 º
