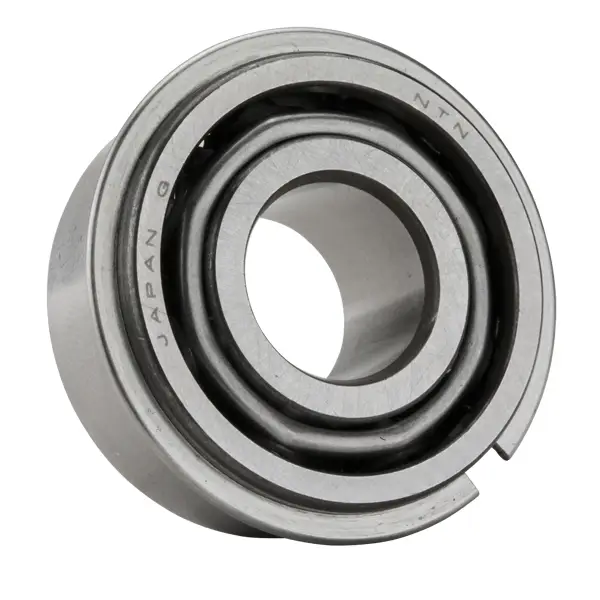

NTN 5312NRC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4500 RPM
Limiting Speed - Grease
3400 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
98500 N
Dynamic Load Rating
125000 N
Enclosure
Open
Weight
2.958 kg
Operating Temperature Range
-40 to 120 ºC

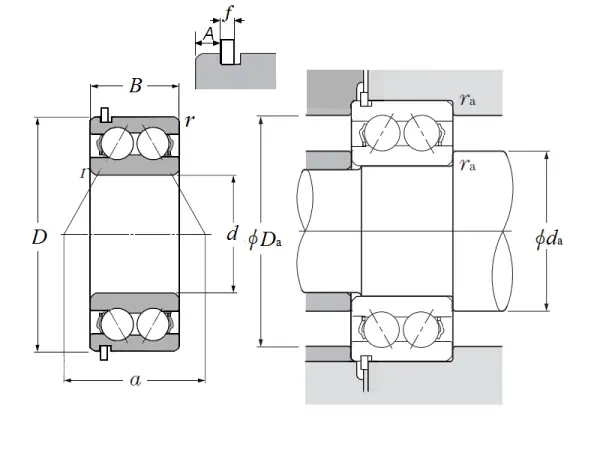

Dimensional Specifications
d
60.000 mm
D
130.000 mm
B
54.000 mm
A
3.860 mm
D2
139.700 mm
D1
124.710 mm
f
3.100 mm
r
2.100 mm
Contact Angle
25 º
a
79.500 mm
da min
72.000 mm
Da max
118.000 mm
ras max
2.000 mm
