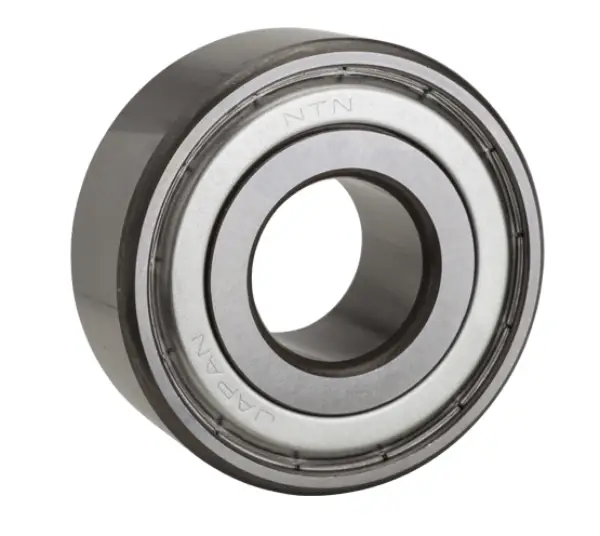

NTN 5312T2ZZ
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
3500 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
98000 N
Dynamic Load Rating
125000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

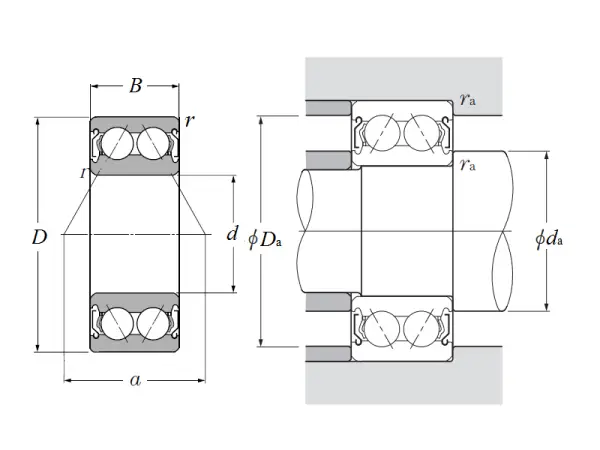

Dimensional Specifications
d
60.000 mm
D
130.000 mm
B
54.000 mm
r
2.100 mm
Contact Angle
30 º
a
67.300 mm
