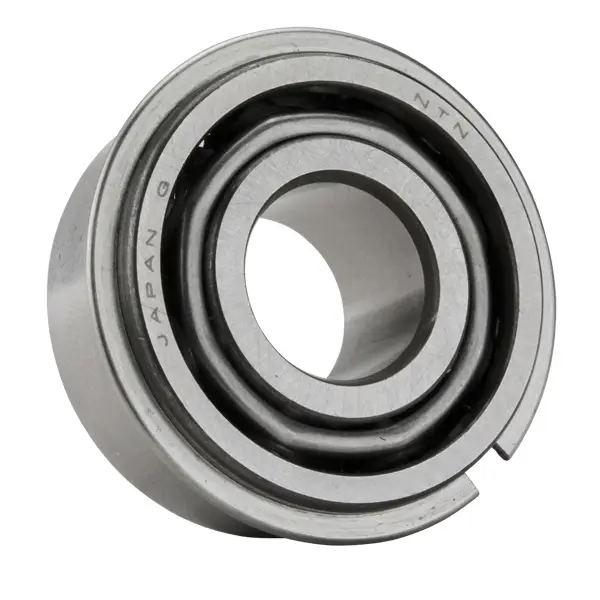

NTN 5312WLC3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Cylindrical
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3700 RPM
Limiting Speed - Grease
2900 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
139140 N
Dynamic Load Rating
154700 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

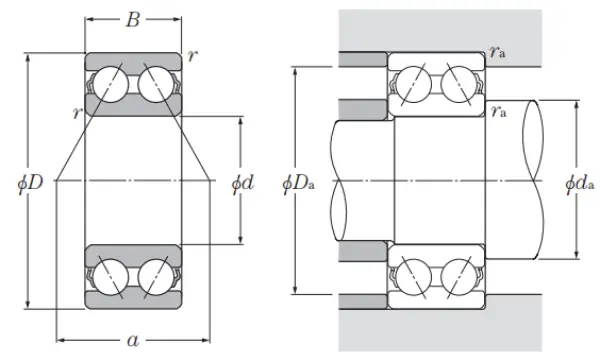

Dimensional Specifications
d
60.000 mm
D
130.000 mm
B
53.975 mm
r
2.032 mm
Contact Angle
24 º
