NTN 5313C3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4300 RPM
Limiting Speed - Grease
3200 RPM
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Static Load Rating
113000 N
Dynamic Load Rating
142000 N
Enclosure
Open
Weight
3.687 kg
Operating Temperature Range
-40 to 120 ºC

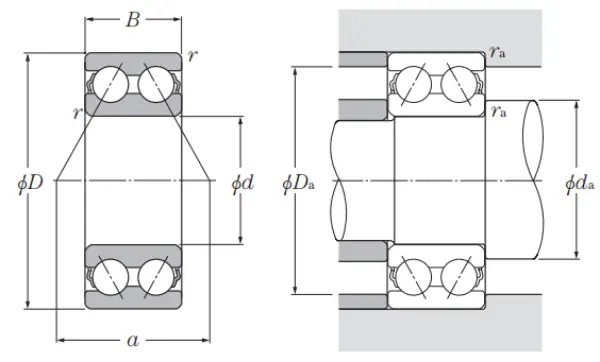

Dimensional Specifications
d
65.000 mm
D
140.000 mm
B
58.700 mm
r
2.100 mm
Contact Angle
25 º
a
84.500 mm
da min
77.000 mm
Da max
128.000 mm
ras max
2.000 mm
