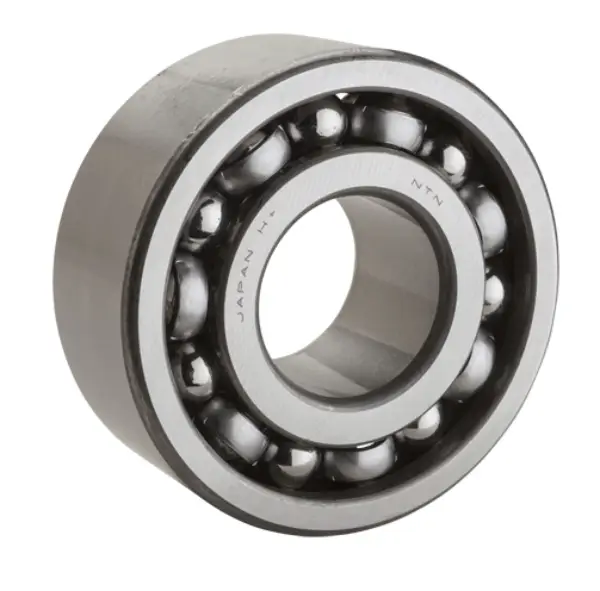

NTN 5318C3
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
C3
Enclosure
Open
Weight
8.467 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
90.000 mm
D
190.000 mm
B
73.025 mm
r
3.988 mm
Contact Angle
25 º
