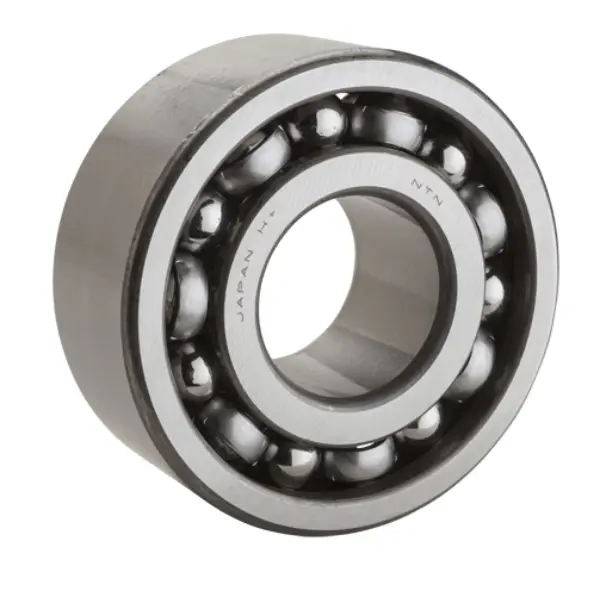

NTN 5319
Double Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Outside Ring Type
Straight
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Aluminum
Ball Material
Steel
Precision
Class 0
Configuration
Two
Radial Internal Clearance
CN
Static Load Rating
199000 N
Dynamic Load Rating
212000 N
Enclosure
Open
Weight
10.900 kg
Operating Temperature Range
-40 to 120 ºC

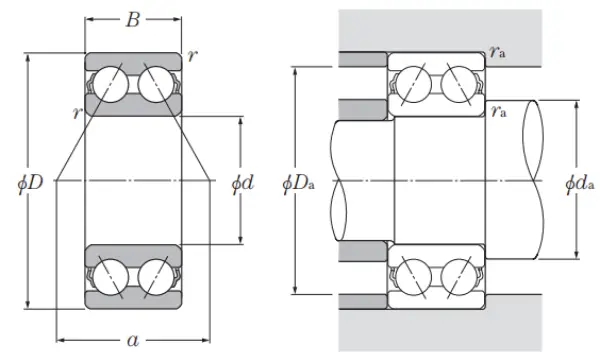

Dimensional Specifications
d
95.000 mm
D
200.000 mm
B
77.800 mm
r
3.000 mm
Contact Angle
30 º
