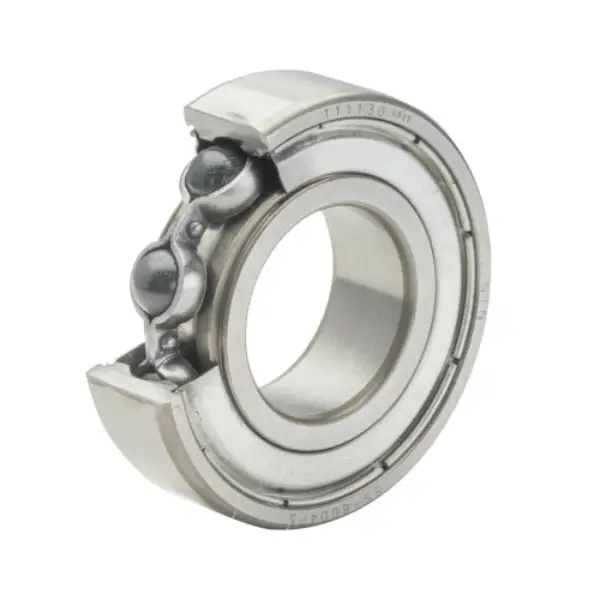

NTN 5S-6208ZZC3/EM
Ceramic Rolling Element Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Ceramic
Limiting Speed - Grease
8700 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
14.0
Radial Internal Clearance
C3
Static Load Rating
12400 N
Dynamic Load Rating
29100 N
Enclosure
Double Shielded
Weight
0.368 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
r
1.100 mm
r1
0.300 mm
da min
46.500 mm
da max
51.000 mm
Da max
73.500 mm
ras max
1.000 mm
