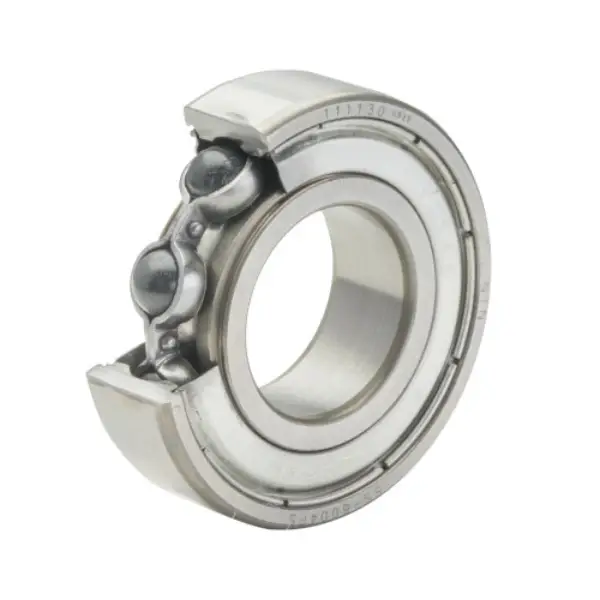

NTN 5S-6211ZZC3/EM
Ceramic Rolling Element Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Ceramic
Limiting Speed - Grease
6400 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
14.3
Radial Internal Clearance
C3
Static Load Rating
20300 N
Dynamic Load Rating
43500 N
Enclosure
Double Shielded
Weight
0.606 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
55.000 mm
D
100.000 mm
B
21.000 mm
r
1.500 mm
r1
0.500 mm
da min
63.000 mm
da max
67.000 mm
Da max
92.000 mm
ras max
1.500 mm
